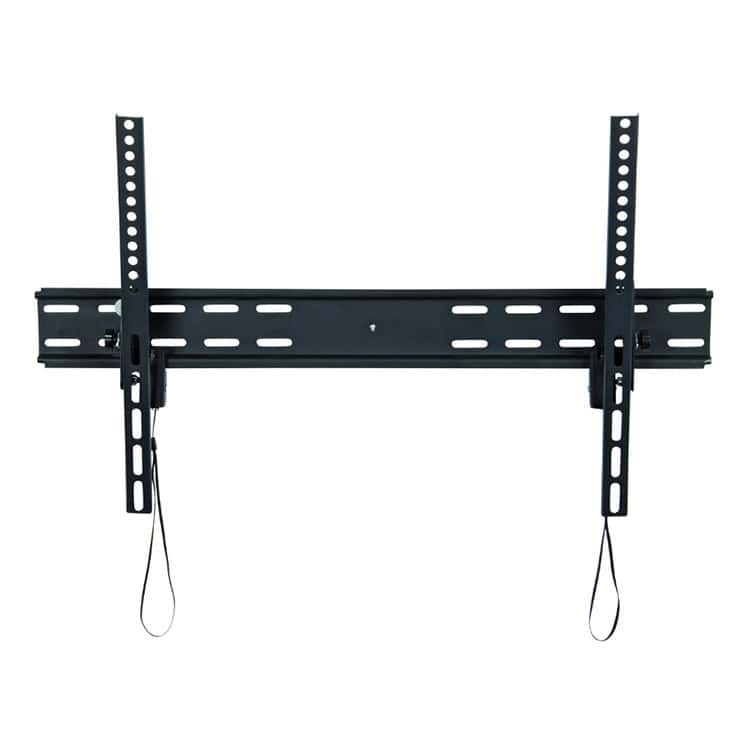

Thor Tilt TV Wall Mount 42”-100” 28096T

The 28096T ultra slim tilt TV wall mount is designed to fit any 42″-100″ Flat Panel TV up to 50kg Super Slim design sits just 40mm from wall to complement the sleek look of ultra-thin TVs. It tilts effortlessly and allows lateral shift adjustment meaning the TV can slide left or right on the wall plate so it is positioned exactly where you want it. It features an open design which maximizes airflow to equipment and provides easy access to the back of components. Maximum VESA 600×400

• Freely tilting allows easy TV angle adjustment


• Super slim design sits just 45mm from wall to complement the sleek look of ultra-thin TVs


• Convenient click-in spring lock with quick-release cords provide a safe and easy connection


• Open architecture provides superior ventilation and easy access for wiring


• Lateral shift allows TV to slide left and right for perfect placement


• Simple construction ensures a quick and easy installation


• Automatically click-in spring lock with easily-release tab easily and securely attach your flat panels to wall


Specifications

Function:	Tilting
Mounting Pattern:	Universal
Material:	Steel, Plastic
Surface Finish:	Powder coating
Available Color:	Black
Product Size:	665X424X45mm
Suggested Screen Size:	40″-100″
Installation:	Solid wall, Double Stud
Rated Load:	75kgs/1650lbs
Strength tested:	4 times approved
Max.Hole Pattern:	605x438mm
VESA:	200×200,400×200,300×300,400×400,600×400
Tilt:	＋0°～-8°
Profile:	45mm
